Hot Air Welding Machine

FOB Reference Price:Get Latest Price
US $6,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Power(W):
4KW
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Machine Type:
welding machine for filter bag
Bag Type:
Filter Bag
Material:
Non Woven Bag
Computerized:
Yes
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
GTF
Model Number:
GTF-TL
Voltage:
220V/380V
Dimension(L*W*H):
16000*1500*2100
Weight:
1500kg
Certification:
CE Certificate
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training, Engineers available to service machinery overseas
Product name:
Hot Air Welding Machine
Type:
welding machine
Speed:
1~18m/min
Supply Ability
Supply Ability:
8 Set/Sets per Month
Packaging & Delivery
Packaging Details
auto dust collector filter bag sewing machine with 40' container load
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 30 To be negotiated
Video Description
Product Description

Product details

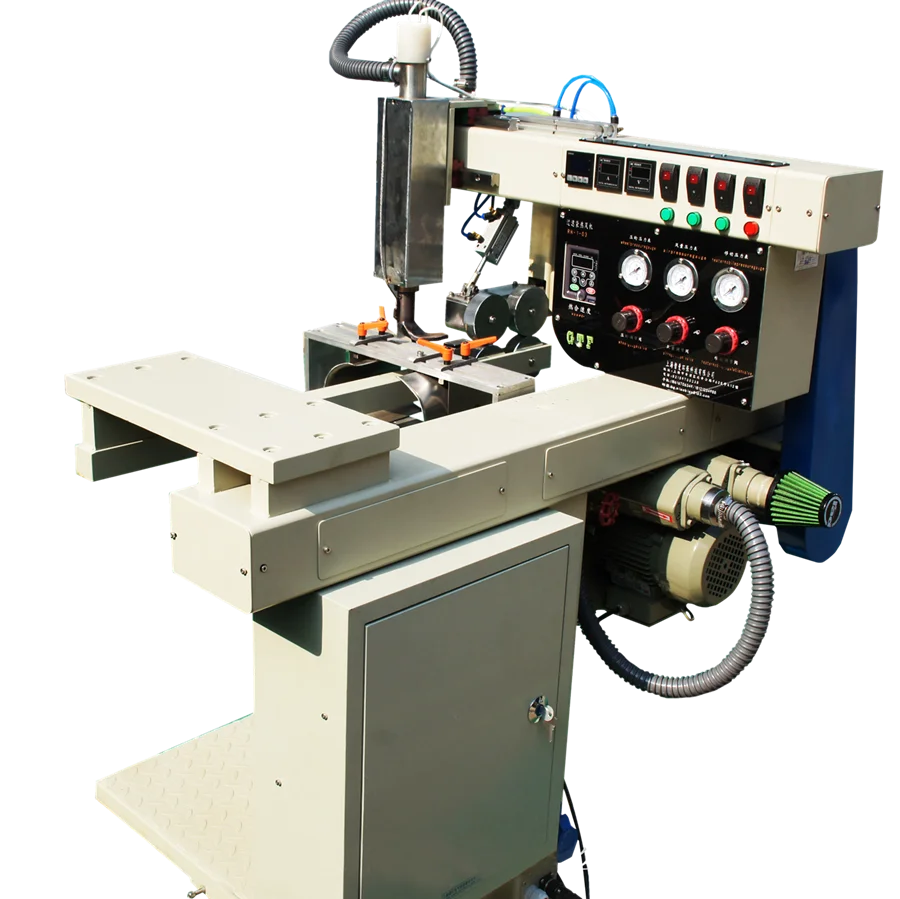

hot air welding machine


Hot air welding machine is special for welding low and mid temperature fabric.The speed is fast and no need sewing thread,it can replace sewing machine.Wheels pressure,temperature and speed can be adjusted easily;Humanized operation interface can save labor cost and increase efficiency.

Cooperate with drawing part and feeding part,it can be a simple automatic machine-semi automatic hot air welding production line.

Product Parameters
Voltage
AC 220V 50Hz
Rated Power
2000W
Temperature
600°C
Speed
1~18m/min or Standard 1~18m/min
Air Pressure
0.35~0.5Mpa
Width of Wheels
Standard 30mm,accept customized
Nozzle Width
Standard 30mm/20mm,accept customized
Distance between upper wheels and lower wheels
18mm~25mm
Dimension
1500*720*1600
weight
280kg

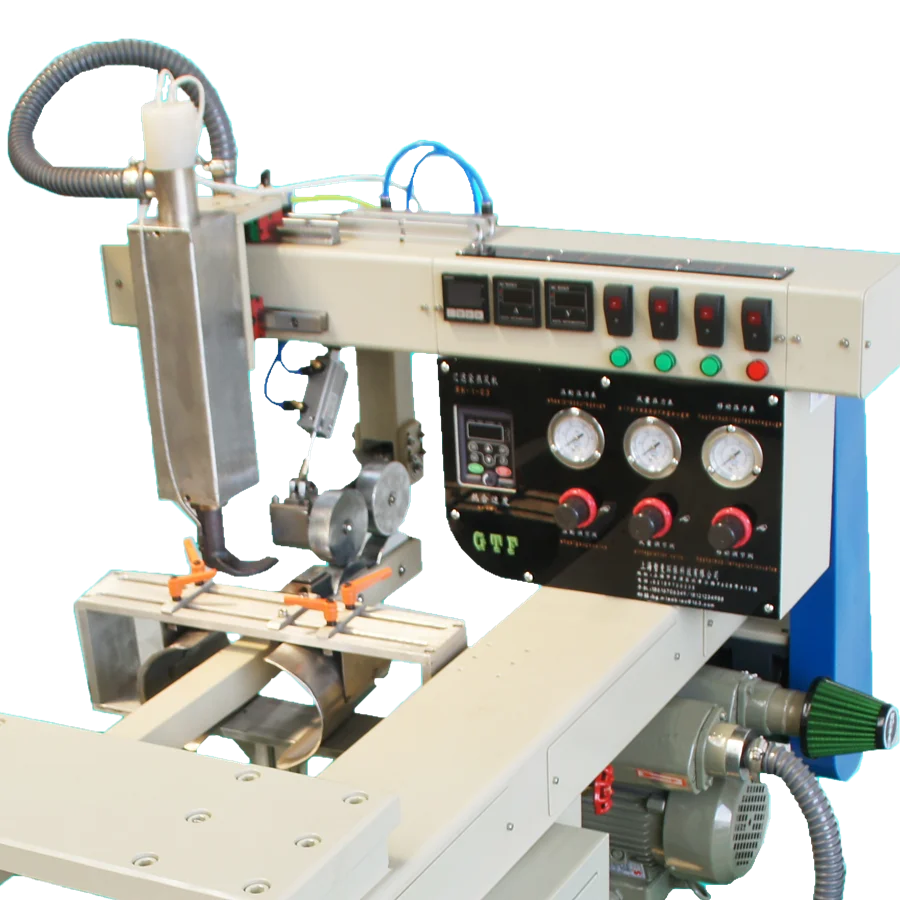

Detailed images


Sensor    PLC    Press Switch  →  Press Filter Tube  →  PLC



Convey Belt  ← PLC Press Device Lift to the Top  ←   Press Switch

machine working in proper order
Why Choose Us


Good corporate environment and employees' hard work



The leading manufacturer of filter bag machines and

Professional filter bag machine technology



A good relationship with the customer


Product Packing
Oversea Service

Excellent after sale service
