Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: GTF
  • Model Number: GTF-TL
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: automatic sewing machine
  • Application: industrial textile
  • Warranty: 2 Years
  • Function: dust filter bag sewing

Packaging & Delivery

Packaging Details container
plywood case
export PP film with foam
Delivery Time Shipped in 20 days after payment
Product Description

 Automatic dust filter bag production line machine is special designed for dust filter bag manufacturing fields. It is widely used in bag filter factory and famous for is high efficiency. save a lot of labour cost for filter bag factories.we have many different types filter bag sewing machines to meet different clients needs. Good price but best service .welcome to send inquiry to us .





Packaging & Shipping

 Highly quality plywood case pacakge or containers ,all machines fasten in container wall with SS wires .we can assure you the machines is very steady stand in the container and shipping to you in very good station .



Our Services

 During almost 20 years machines manufacturing experience, we have much professional design team and technical engineers . Our engineer can avalaible at any time you need . we can send engineer to help customer solve the problem in 48 hours if the client is nabour city such as ZheJiang province, Jiang su , Shanghai and so on. For foreign clients, we will do action within 5 days if there must engineer come. But first, we will try to help customer solve problems through computer at the first time .

Company Information



Shanghai German-Typical Filtech Co.,Limited is the most specialized filter bag making machine manufacturer integrating development, manufacturer and sales in China. Through several years of hard pioneering. We have formed a Shanghai based, nationally distributed and internationally expanding strategic structure. Our products are sold to countries and territories including U.S.A, Europe Countries, Brazil, Thailand, Korea, India, Russia,  Argentina , Mexico, South Africa, Mid-east and so on. By cooperation with a few internationally famous filter bag manufacturers, we have made our quality administration perfect.

We are a truly powerful filter bag making machine manufacturer.

Our products included: automatic filter bag production line, automatic liquid filter bag production line, laser cutting machine, automatic fabric roll cutting machine, short arm sewing machine, long arm sewing machine, hot welding machine, three needle sewing machine, ultrasonic  Machine, bag folder machine and a series of filter bag making machines.



Machine  Description

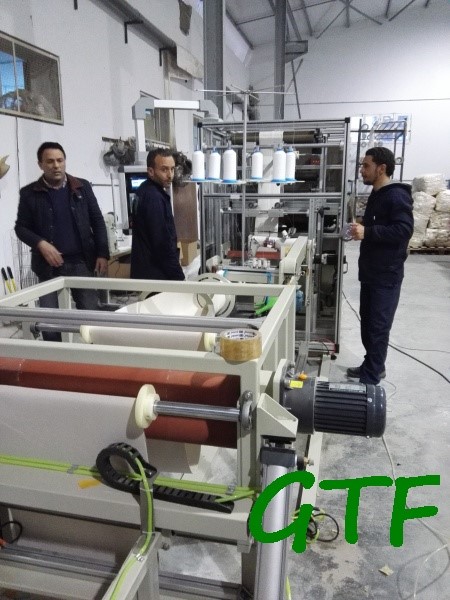

  Auto filter tube sewing line

The complete line have 16 meters long, the tube table long 9.5 meters, can change according to customer’s need)height : 2.5meters,width,1.8 meters. Can be divided into Five parts :



1,Feeding part:lenght 1.40  meter,height 1.10meter, width 1.20 meter

   1)max width of fabric roll:1.1meter

2,Auto sewing  part :height 1.8 meter(including thread coil),height 0.6meter,length 1 meter

   1)sewing head (juki-1261),arm add 30cm,others are JUKI self parts

   2)tube holder arm:12cm-30cm(can make according to customer’s needs)

   3)sewing speed :7-10meter/min (frequency control ,speed can be adjusted )

3,Tube storage part :height 2.5meter ,width 0.7meter,Length 1.8 meter

   Storage tube length :more than 8 meters

4, Tube Cutting part :height 1.2 meter ,length 9.5meter ,width 1.2 meter

   The length of tube :9.5meter(can make much longer according to customer’s request)

   Selected length accuracy: less than 02mm

5,Operation panel :height 0.9 meter,width 0.6 meter,length 0.4meter

   Function :manual & automatic

Different parts function:

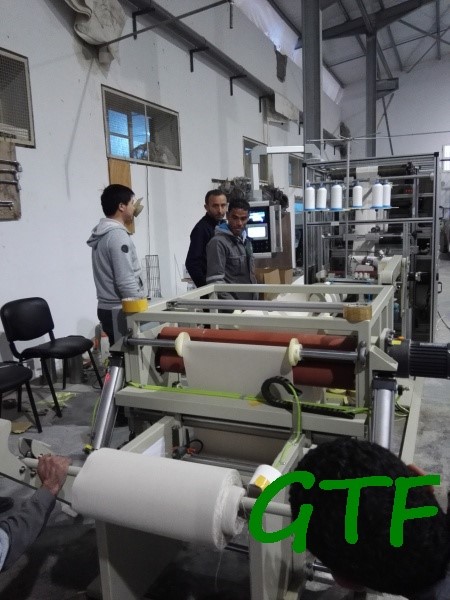

1,Synchronous discharge part: adopt diameter on 100mm rubber rollers,cylinder work with motor to achieve synchronous discharge

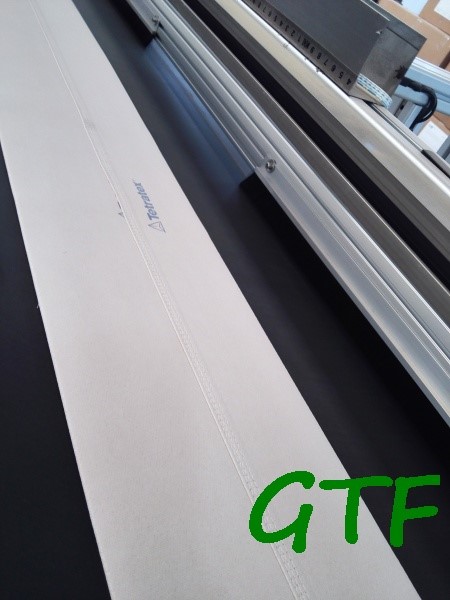

2,Auto sewing parts :JUKI-126 mode three needle sewing head , work with pre-shape equipment to achieve auto folding effect

3,Tube storage part : upper & down limited switches to insure leading equipment in sewing part to feeding material on time .

4,Fixed length cutting part:3.5kw large motor transfer belt to transit filter tube ,double imported electric reducer,fix-length ,cylinder and laser cutting knifer .

Operation panel:PLC  is  the complete machine line  control center,use  frequency converter , electric relay ,screen & control keys to work together, make whole line can running  smoothly .
